Plant & technology

A computerised wet-mix batching plant at Gaulane, Nashik, with cement silos, an in-house laboratory and a transit-mixer fleet.

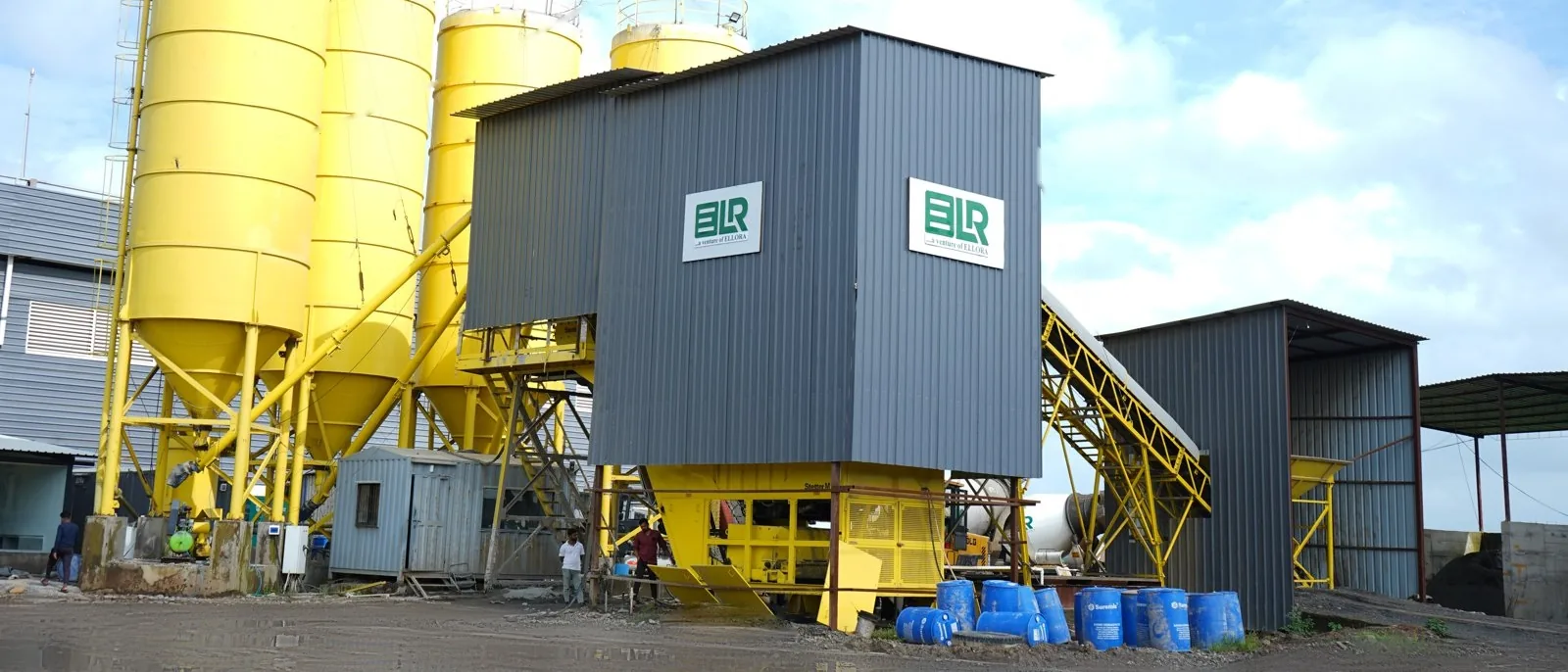

The ELR batching plant at Gaulane: cement silos, the mixer tower with the ELR boards, the covered conveyor and the batcher shed

ELR RMC plant · Gaulane, Nashik

Walk the plant

Drag to rotate, scroll or pinch to zoom, hover to name a part, click it to read what it does. Right-drag, middle-drag or double-click and hold to move the view; double-click a spot to centre on it. The plant runs on a loop: aggregate on the conveyor, the loader feeding the batcher, mixers loading, weighing out and coming back. Pick a station to fly there, or let the auto tour run. Modelled on drone and ground photographs of the ELR plant, simplified, not a survey drawing; the factory building beside it is left out.

Loading the plant model…

Drag: turn · Right-drag: move · Scroll: zoom

Explore

The ELR plant at Gaulane, at work

Pick a station above or start the auto tour. Click any part of the plant to read what it does.

The six stations

What happens to a batch from stockpile to cube test.

Aggregates

Sand and coarse aggregate arrive by tipper, are stocked by size and loaded into separate bins, one fraction per compartment.

4 bins · 1 fraction each · moisture checked

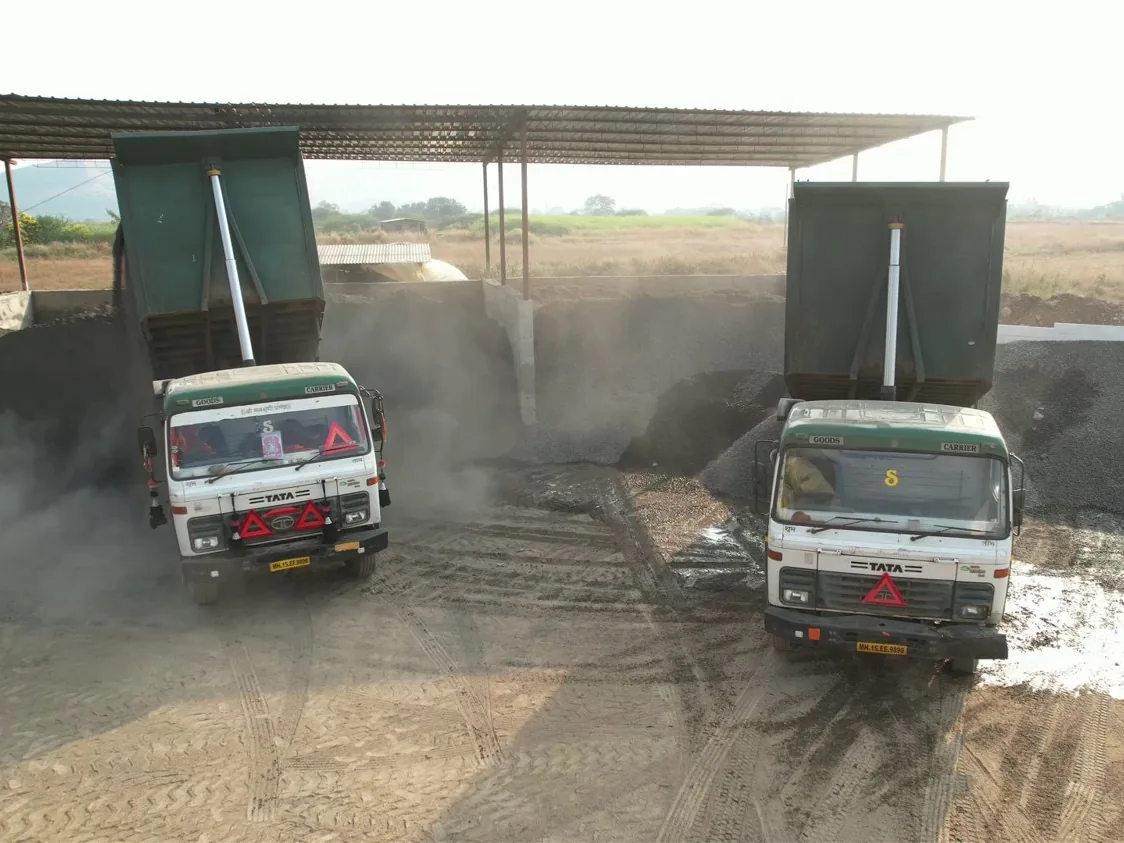

Tippers unloading crushed stone and sand into the roofed aggregate bays at the ELR plant

Batching

Each ingredient is weighed on its own load cells against the approved mix design: aggregates on the belt, cement from the silo, water and admixture in their hoppers.

weighed, not measured by volume

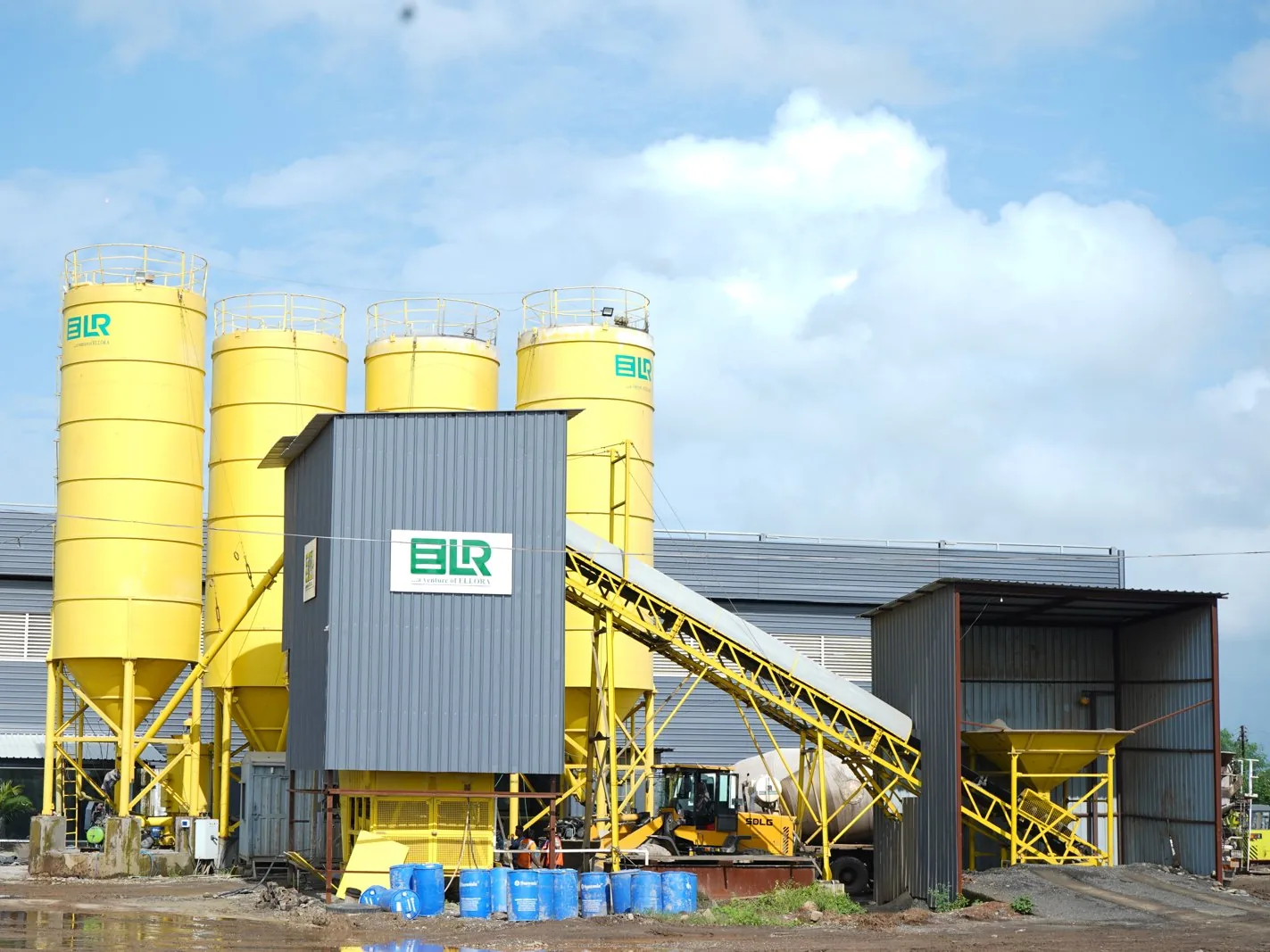

Cement silos, the mixer tower and the covered conveyor up from the aggregate batcher at the ELR plant

Mixing

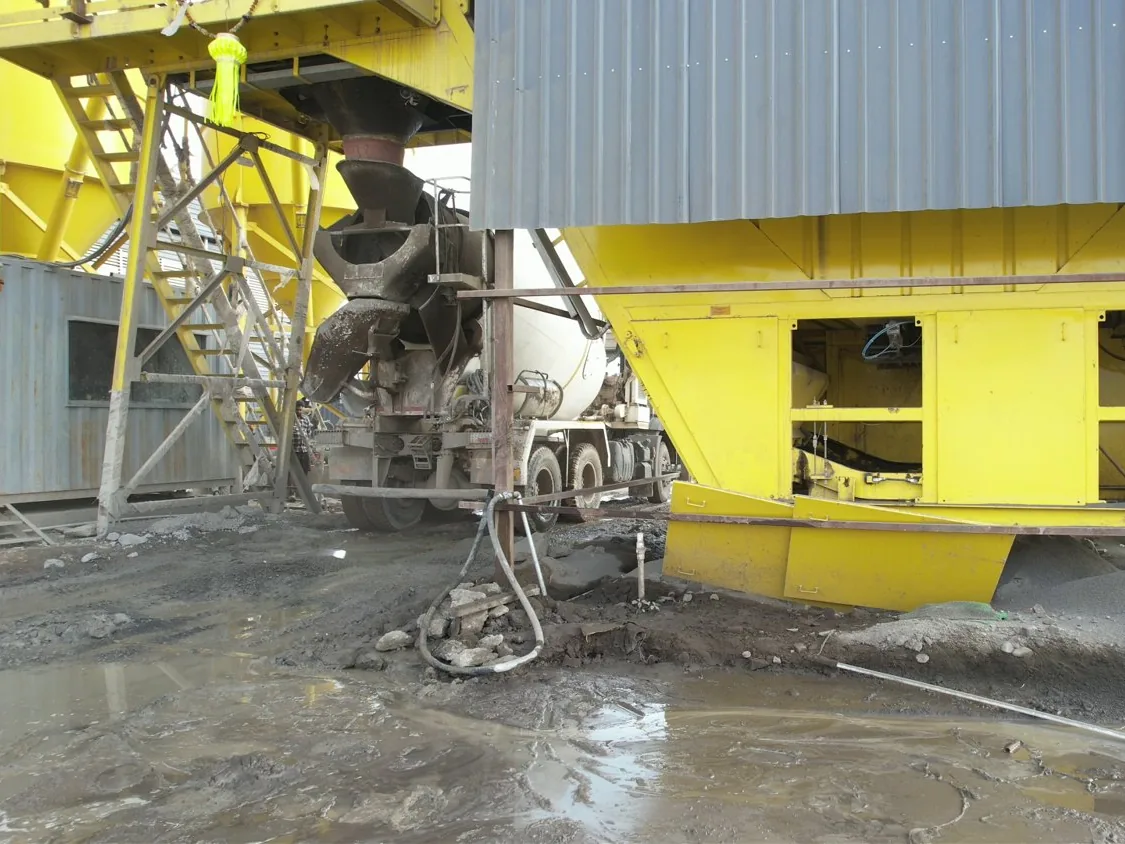

Everything meets in the twin-shaft mixer. Two counter-rotating shafts turn the batch into a homogeneous mix in seconds before it drops through the discharge hopper.

twin-shaft · one batch at a time

Transit

The transit mixer takes the batch under the chute, is weighed out and leaves with its docket: grade, quantity, batch time, truck. The drum keeps turning on the way.

6 m³ per load · docket on every truck

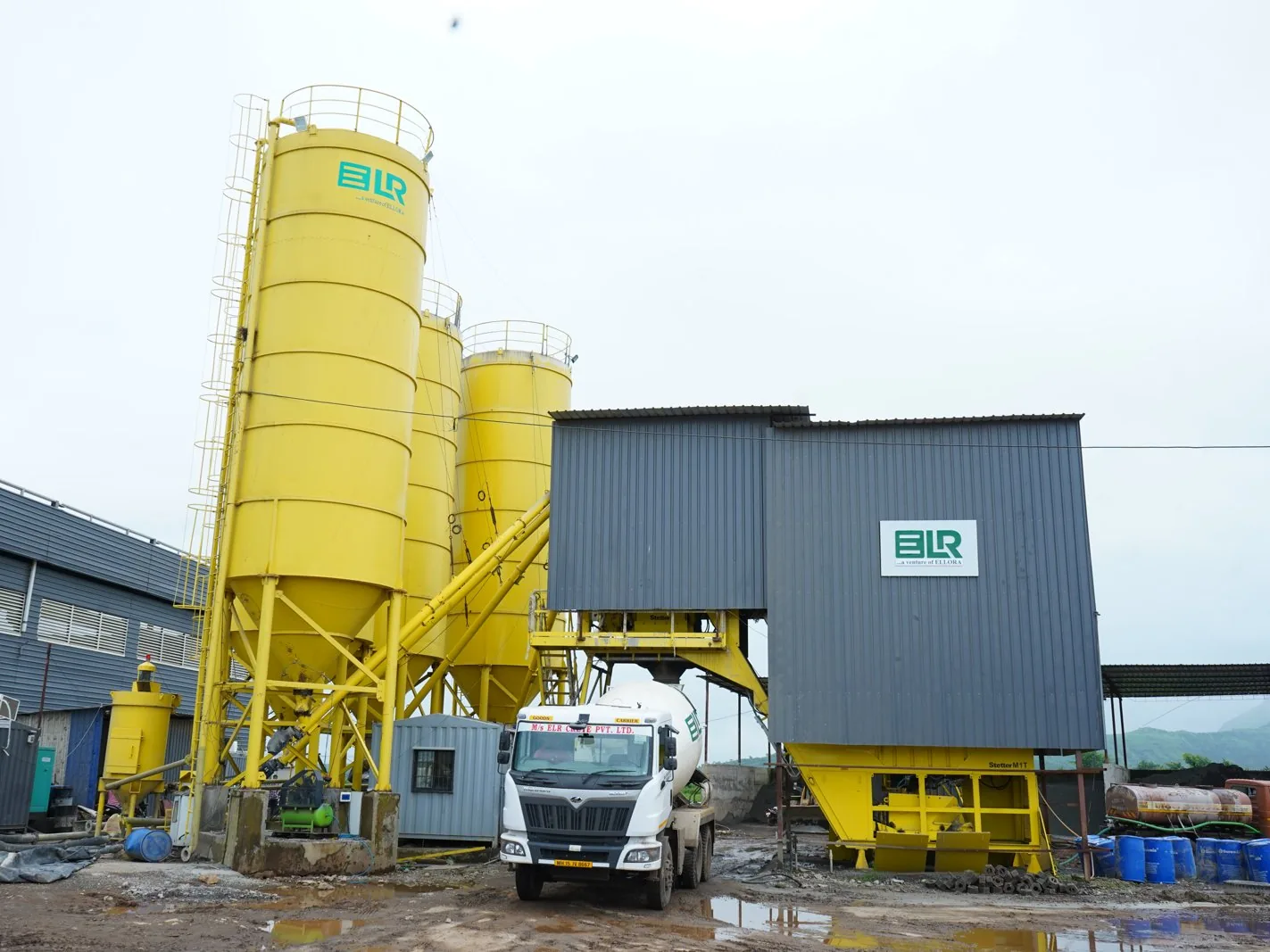

An ELR transit mixer under the mixer tower at Gaulane

Pour

At site the slump is checked again, then the concrete is placed straight from the chute or through a boom or stationary pump, matched to the element being poured.

slump at plant and at site

Cube test

Cubes cast from the delivered concrete are cured and crushed at 7 and 28 days in the lab, and the result is filed against the docket.

7 d and 28 d · IS 516 · results on record

Facility

Controlled batching, consistent mix design, quality-tested raw materials and an efficient production workflow.

Mixing: Wettwin-shaft
Weighing: Loadcells
Lab: In-house
Loads: 6m³

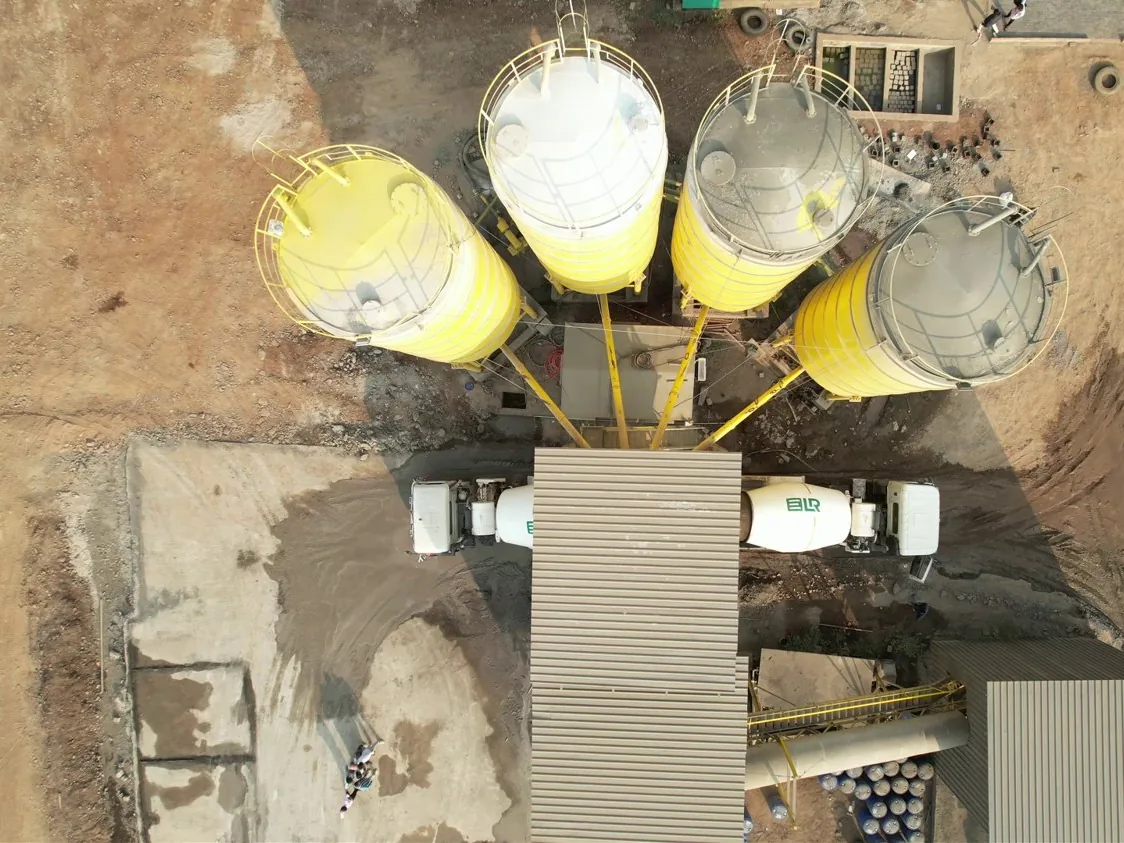

From above: the four cement silos on their arc around the mixer tower, with two ELR mixers in the loading lane

An ELR transit mixer under the Stetter mixer tower

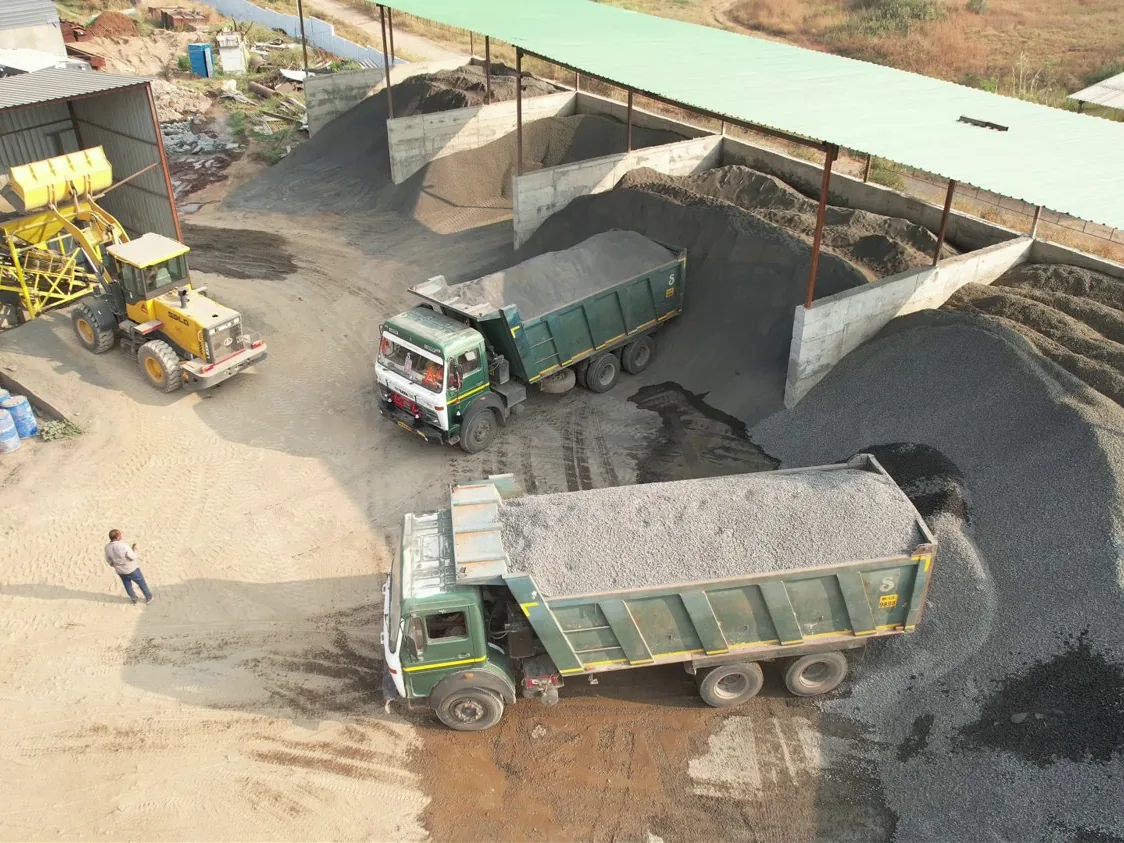

The wheel loader at the aggregate batcher, with tippers in the roofed bays

An aggregate tipper crossing the weighbridge beside the weighbridge cabin

Concrete plant and machinery

Batching plants, pumps and mixers from the Ellora Group plant and machinery register (August 2026).

Equipment	Make	Model / rating	Nos
RMC batching plants	Schwing Stetter	CP18, CP30, CP60	6
Concrete boom pumps	Schwing Stetter	36 m, 42 m	2
Stationary concrete pumps	Schwing Stetter	50 m³/hr rated	2
Transit mixers	Mahindra, Tata	6 m³	18
Self-loading mixers	AJAX	4 m³ and 2.8 m³	2
Concrete vibrators & screeds	Greaves, Mikasa	Needle, surface	40+
